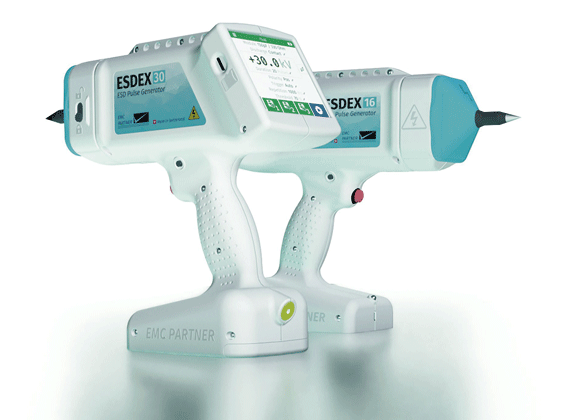

ESDEX series generators represent the latest innovation in ESD testing up to 30 kV.

Designed and manufactured by EMC PARTNER AG, they are available in 8, 16 and 30 kV versions and support a wide range of interchangeable RC networks to ensure full compliance with the latest international standards, including IEC 61000-4-2 Ed.3, ISO 10605, RTCA DO-160 Section 25, and MIL-STD-461 CS118.

A comfortable and efficient ESD testing process is ensured by a perfectly balanced and ergonomically optimized design. The precisely engineered balance point allows effortless movement in any direction or angle, enabling long test sessions with minimal strain.

The large 4” capacitive touchscreen offers a wide viewing angle and excellent readability from any position. Compared to traditional resistive screens, it delivers a modern, fast, and highly responsive user experience.

Featuring cutting-edge components, advanced interface design, and state-of-the-art communication technology, the ESDEX series meets today’s demands for smart operation, modern connectivity, and high performance.

Its modular architecture provides maximum flexibility, allowing users to configure the generator precisely to their application requirements.

Highlights:

• ergonomic handling – perfectly balanced
• 4” large capacitive touchscreen
• intuitive and smart operation
• create user defined test plans
• programmable side buttons – single hand operation
• direct report generation on the generator (PDF, CSV, HTML)
• rechargeable battery – USB-C fast charging (80 min)

Applications:

• Industrial (IEC 61000-4-2)
• Automotive (ISO 10605)
• Defense (MIL-STD-461 CS118)
• Avionics (RTCA DO-160 Section 25)
